Force and Motion

Kinematics Fundamentals & Reference Frames

Mechanics is the primary branch of classical physics analyzing the motion of physical bodies and the forces acting upon them. It divides into two distinct analytical domains:

Kinematics: The mathematical description of motion in terms of position, displacement, velocity, and acceleration, completely ignoring the external forces causing it.
Dynamics: The causal study of motion directly incorporating the forces, mass distributions, and energy transfers that govern it.

Rest and motion are fundamentally relative rather than absolute states. An object is defined as at rest if its spatial position remains invariant with respect to a designated observer. If its spatial coordinates change over time, the body is in motion:

No body in the universe exists in a state of absolute rest or absolute motion.
Motion is strictly observer-dependent. A passenger seated in a train cruising at 36 km/h has a relative speed of 0 m/s with respect to the train compartment, but moves at 10 m/s with respect to a stationary observer standing on the railway platform. UHS 2023

Reference Frame Classification

Inertial Frame of Reference: A non-accelerating coordinate system where Newton's First Law holds true. The frame is either entirely at rest or moving at a constant rectilinear velocity ($a = 0$).
Non-Inertial Frame of Reference: An accelerating or rotating coordinate frame ($a \ne 0$) where Newton's laws fail unless fictitious inertial forces (pseudo-forces like centrifugal force) are mathematically introduced.

Crucial Physiological Boundary

Is time variable in classical Newtonian kinematics?

No! In classical Newtonian mechanics, time is treated as universal and absolute, ticking at the exact same invariant rate for all observers regardless of their relative velocities.

Provincial Board Variance

STB: STB organizes mechanics across two distinct textbook chapters: Chapter 2 for Kinematics and Chapter 3 for Dynamics and Vectors.

FTB: FTB emphasizes that classical mechanics assumes Galilean invariance where time intervals are identical in all inertial reference frames.

Distance vs Displacement Dynamics

Describing the positional displacement of a moving particle requires distinguishing between scalar path length and vector spatial separation:

Distance ($S$): The total scalar path length traversed by an object between initial and final positions. Distance is scalar, strictly positive ($S > 0$) for any body in motion, and monotonically increases with time. It can never be zero or negative once motion occurs.
Displacement ($\vec{d}$): The directed vector representing the shortest straight-line distance pointing from the initial coordinate to the final coordinate. Displacement can be positive, negative, or zero (for closed-loop journeys).

The dimensional equivalence of both quantities is $[\text{M}^0\text{L}^1\text{T}^0]$ with standard SI unit meter ($\text{m}$).

Geometric Invariants & Path Ratios

The Fundamental Inequality: For all arbitrary physical paths, the ratio of distance to displacement magnitude satisfies:
$$\frac{\text{Distance}}{|\text{Displacement}|} \ge 1$$
Equality Condition: Distance strictly equals displacement magnitude ($\frac{S}{|\vec{d}|} = 1$) only when an object moves strictly along a straight line in one unidirectional sense without reversing.
Curved or Reversing Paths: If a trajectory curves or turns back, distance is strictly greater than displacement ($\frac{S}{|\vec{d}|} > 1$).

Crucial Physiological Boundary

Can displacement be zero while distance is non-zero?

Yes! If a particle completes a closed loop and returns to its initial launch coordinates, net displacement is exactly 0 m, while total distance equals the full boundary perimeter.

Provincial Board Variance

PTB: PTB explicitly tests the semicircular track: a runner traversing a half-circle of radius r covers distance $\pi r$ with displacement $2r$, yielding ratio $\frac{\pi}{2} \approx 1.57$.

KTB: KTB notes full circular trajectory ratio of displacement to circular distance is zero over $2\pi r$, yielding a ratio of zero.

Velocity Vectors & Relative Motion

The temporal rate of motion is quantified by comparing scalar speed against vector velocity:

Speed ($v$): The scalar time rate of covering distance ($v = \frac{S}{t}$). It is always non-negative ($v \ge 0$).
Velocity ($\vec{v}$): The vector time rate of change of displacement ($\vec{v} = \frac{\Delta \vec{d}}{\Delta t}$). Its direction is collinear with the displacement vector. Both share SI units of $\text{m/s}$ and dimensions $[\text{M}^0\text{L}^1\text{T}^{-1}]$.

Velocity is classified into operational categories:

Average Velocity: Net displacement divided by total elapsed time:

$$\vec{v}_{\text{avg}} = \frac{\Delta \vec{d}}{\Delta t} = \frac{\vec{d}_2 - \vec{d}_1}{t_2 - t_1}$$

Instantaneous Velocity: Limiting value of average velocity as the evaluation time interval approaches zero:

$$\vec{v}_{\text{inst}} = \lim_{\Delta t \to 0} \frac{\Delta \vec{d}}{\Delta t} = \frac{\text{d}\vec{d}}{\text{d}t}$$

Uniform Velocity: Covering equal vector displacements in equal intervals of time, regardless of how small the intervals are.

Relative Velocity Transformation Laws

Collinear Opposite Directions: Two bodies approaching or separating add velocities:
$$v_{\text{rel}} = v_1 + v_2$$
Example: Two vehicles approaching head-on at 70 km/h and 60 km/h register a relative closing speed of 130 km/h. SZABMU 2022
Collinear Same Direction: Two bodies traveling in the same sense subtract velocities:
$$v_{\text{rel}} = |v_1 - v_2|$$

Crucial Physiological Boundary

Does constant speed guarantee constant velocity?

No! Uniform circular motion maintains constant scalar speed, but velocity continuously changes at every instant because the directional tangent continuously rotates.

Provincial Board Variance

DUHS: DUHS tests: When an object moves with uniform velocity, its instantaneous velocity and average velocity are identical at all points.

KTB: KTB emphasizes that average speed can never be smaller than average velocity magnitude.

Acceleration Archetypes & Directional Vectors

Acceleration ($\vec{a}$) is defined as the time rate of change of velocity:

$$\vec{a} = \frac{\Delta \vec{v}}{\Delta t} = \frac{\vec{v}_f - \vec{v}_i}{\Delta t}$$

Acceleration is a vector quantity with SI unit $\text{m/s}^2$ and dimensions $[\text{M}^0\text{L}^1\text{T}^{-2}]$.

Crucially, acceleration points along the direction of the change in velocity ($\Delta \vec{v}$), which is not necessarily parallel to the instantaneous velocity vector ($\vec{v}$) or position vector ($\vec{d}$).

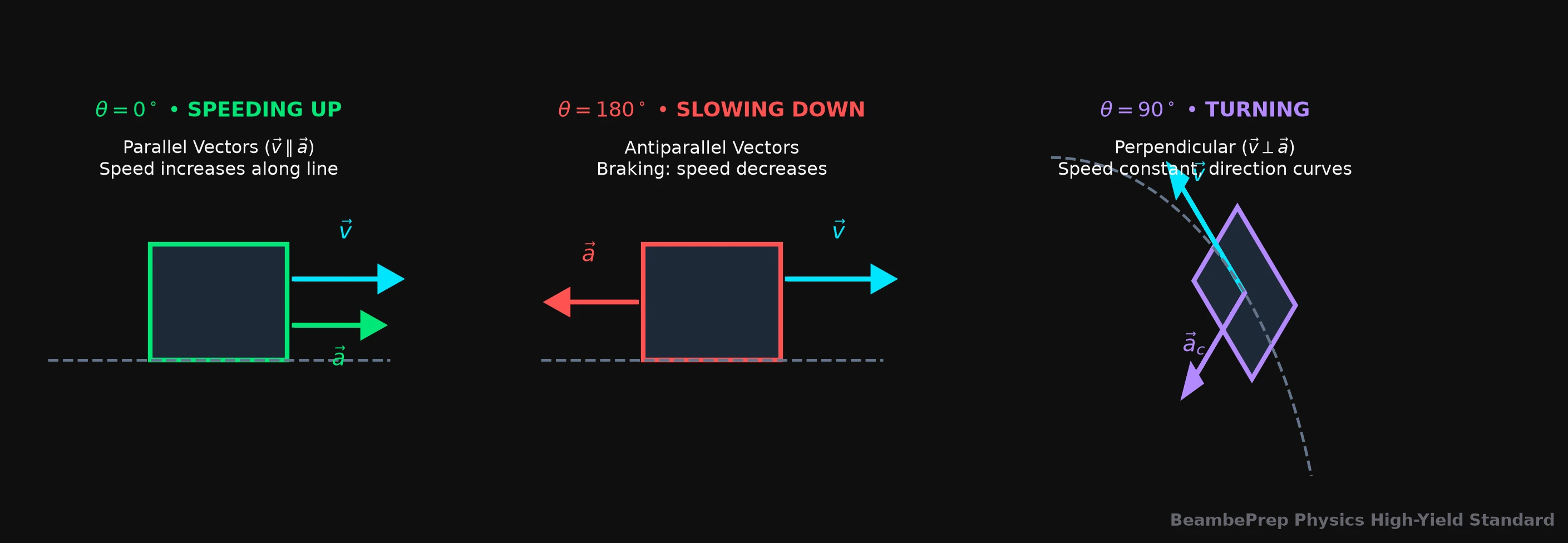

Directional dynamics fall into three geometric orientations:

Speeding Up ($\theta = 0^\circ$): $\vec{a}$ is parallel to $\vec{v}$. If a vehicle travels along the negative x-axis and accelerates, its acceleration points along the negative x-axis. SZABMU 2023
Slowing Down / Retardation ($\theta = 180^\circ$): $\vec{a}$ is antiparallel to $\vec{v}$. If a vehicle travels along the negative x-axis and brakes, its acceleration vector points along the positive x-axis. NUMS 2023
Turning at Constant Speed ($\theta = 90^\circ$): $\vec{a}$ is perpendicular to $\vec{v}$. Scalar speed remains constant while directional curvature generates centripetal acceleration pointing toward the center of curvature. UHS 2023

Crucial Physiological Boundary

If an object has zero instantaneous velocity, must its acceleration be zero?

No! At the apex summit of a vertically launched projectile, instantaneous velocity is momentarily 0 m/s, but gravitational acceleration remains 9.8 m/s^2 directed downward!

Provincial Board Variance

BUMHS: BUMHS notes force and acceleration always share identical direction according to Newton's Second Law.

PTB: PTB highlights deceleration (retardation) as negative acceleration only when positive direction aligns with velocity.

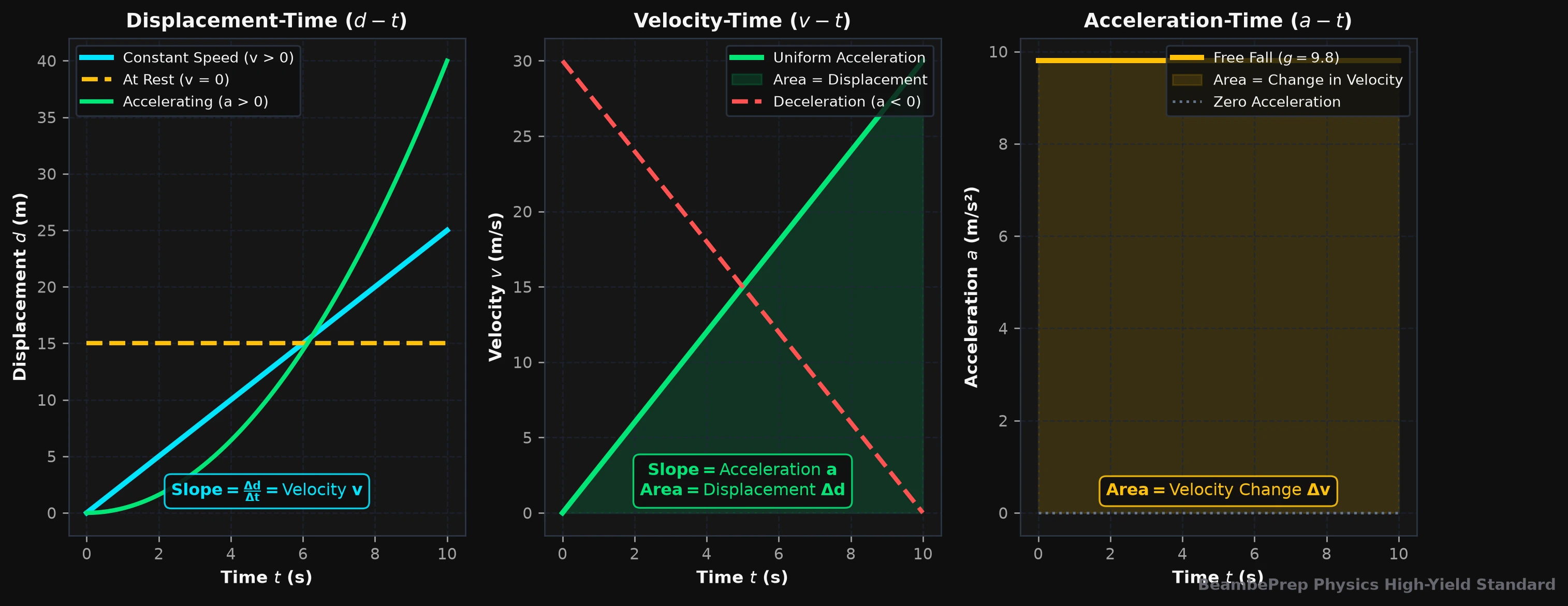

Motion Graph Interpretation: Slopes & Areas

Kinematic relationships are evaluated geometrically using slope gradients and definite integrals (areas under curves):

Kinematic Graph Operations

Displacement-Time ($d\text{-}t$) Graph:
Slope represents Instantaneous Velocity ($\text{Slope} = \frac{\Delta d}{\Delta t} = v$). NUMS 2023
Horizontal line indicates body at rest ($v = 0$).
Straight tilted line indicates uniform constant velocity.
Distance-time slope can never be negative because distance cannot decrease over time. SZABMU 2022
Velocity-Time ($v\text{-}t$) Graph:
Slope represents Acceleration ($\text{Slope} = \frac{\Delta v}{\Delta t} = a$). SZABMU 2024
Area under curve represents Displacement / Total Distance covered. UHS 2024
Area above time axis counts as positive displacement; area below counts as negative displacement.
Acceleration-Time ($a\text{-}t$) Graph:
Area under curve represents Net Change in Velocity ($\text{Area} = \Delta v = v_f - v_i$).

Crucial Physiological Boundary

Does the area under a displacement-time graph represent any physical quantity?

No! The area under a displacement-time graph has units of meter-seconds (m s), which corresponds to no recognized physical quantity in classical mechanics.

Provincial Board Variance

SZABMU: SZABMU past papers frequently test: straight line from origin on v-t graph indicates constant uniform acceleration from rest.

PTB: PTB specifies that when the slope of a v-t graph decreases over time, the body moves with variable, diminishing acceleration.

Uniform Acceleration Equations & Free Fall

Newtonian equations of rectilinear motion are strictly valid only when acceleration is constant (uniform). They fail if acceleration fluctuates with time, position, or velocity:

First Equation: $$v_f = v_i + at$$
Second Equation: $$S = v_i t + \frac{1}{2}at^2$$
Third Equation: $$2aS = v_f^2 - v_i^2$$

Specialized Free Fall Formulations ($v_i = 0, a = g$)

Distance fallen in time $t$: $$h = \frac{1}{2}gt^2$$
Impact velocity from height $h$: $$v = \sqrt{2gh}$$
Time to reach ground: $$t = \sqrt{\frac{2h}{g}}$$
Distance traversed in the $n$-th second specifically:
$$S_n = v_i + \frac{a}{2}(2n - 1)$$
Galileo's Law of Odd Numbers: Distances traversed during consecutive equal time intervals by a body dropped from rest follow odd integer ratios:
$$S_1 : S_2 : S_3 : S_4 = 1 : 3 : 5 : 7$$
For $g = 10\text{ m/s}^2$: $5\text{ m} : 15\text{ m} : 25\text{ m} : 35\text{ m}$.

Crucial Physiological Boundary

Does a heavier mass fall faster than a lighter mass in vacuum?

No! In vacuum, all bodies experience identical gravitational acceleration g = 9.8 m/s^2 regardless of mass, falling side-by-side with identical flight times.

Provincial Board Variance

FTB: FTB explicitly records $g = 9.81\text{ m/s}^2$, whereas PTB, KTB, and BTB round standard baseline to $9.8\text{ m/s}^2$.

BTB: BTB explicitly notes that lunar gravitational acceleration is $1.6\text{ m/s}^2$, approximately one-sixth of terrestrial gravity.

Newton's Laws of Motion & Linear Momentum

Sir Isaac Newton codified the causal mechanics of physical bodies via three foundational axioms:

First Law (Law of Inertia): A body continues in its state of rest or uniform rectilinear motion unless compelled to change that state by an external net unbalanced force:

$$\sum \vec{F} = 0 \implies \vec{a} = 0, \vec{v} = \text{constant}$$

Mass provides the quantitative measure of inertia. KMU 2024

Second Law: A net force acting on a body accelerates it in the direction of the force. Acceleration is directly proportional to net force and inversely proportional to inertial mass:

$$\vec{F} = m\vec{a} = \frac{\Delta \vec{p}}{\Delta t}$$

The SI unit of force is the Newton ($\text{N} = \text{kg}\cdot\text{m/s}^2$), with dimensions $[\text{M}^1\text{L}^1\text{T}^{-2}]$.

Third Law: For every action force, there exists an equal and opposite reaction force:

$$\vec{F}_{AB} = -\vec{F}_{BA}$$

Action and reaction forces act on two different bodies, meaning they never cancel each other out into static equilibrium. UHS 2022

Linear Momentum Invariant

Linear momentum ($\vec{p} = m\vec{v}$) is the vector quantity of motion possessed by a body.
Direction aligns strictly parallel to velocity. SI unit is $\text{kg}\cdot\text{m/s} = \text{N}\cdot\text{s}$, with dimensions $[\text{M}^1\text{L}^1\text{T}^{-1}]$.
Two equal masses traveling at equal scalar speeds in different directions have different momentum vectors. BUMHS 2022

Crucial Physiological Boundary

Do action-reaction pairs cancel each other out to produce zero net force?

Never! Action and reaction act simultaneously on two completely separate bodies. Equilibrium cancellation requires two opposing forces acting on the exact same body.

Provincial Board Variance

SZABMU: SZABMU tests: When a passenger lurches forward upon sudden vehicle braking, this is caused by the inertia of motion of the upper body.

PTB: PTB notes that momentum is conserved in any isolated system free from external unbalanced forces.

Impulse & Collision Dynamics

When a substantial force acts over a brief temporal window, the interaction is evaluated as Impulse ($\vec{I}$):

$$\vec{I} = \vec{F}_{\text{avg}} \Delta t = \Delta \vec{p} = m\vec{v}_f - m\vec{v}_i$$

Impulse equals the net change in linear momentum. In collision safety design (airbags, crumple zones, padded helmets), prolonging impact duration ($\Delta t$) drastically reduces peak impulsive force ($\vec{F}_{\text{avg}}$). NUMS 2023

Collisions between two interacting masses are classified based on kinetic energy conservation:

Elastic Collisions: Total linear momentum, total energy, and total kinetic energy are all strictly conserved ($Q = 0$).
Inelastic Collisions: Total linear momentum and total energy are conserved, but kinetic energy is not conserved (dissipated as thermal heat, acoustic shock, or mechanical deformation).

One-Dimensional Elastic Collision Formulations ($u_2 = 0$)

Relative speed of approach equals relative speed of separation:
$$u_1 - u_2 = v_2 - v_1$$
Case 1 (Equal Masses, $m_1 = m_2$): Velocities swap completely:
$$v_1 = 0, \quad v_2 = u_1$$
Case 2 (Massive Projectile, $m_1 \gg m_2$): Heavy body continues unaffected; light target rebounds at double speed:
$$v_1 \approx u_1, \quad v_2 \approx 2u_1$$
Case 3 (Light Projectile, $m_1 \ll m_2$): Light body rebounds at reverse velocity; massive target remains stationary:
$$v_1 \approx -u_1, \quad v_2 \approx 0$$

Crucial Physiological Boundary

Is momentum conserved in an inelastic collision?

Yes! Linear momentum is conserved in all collisions without exception in an isolated system. Only kinetic energy is non-conserved in inelastic collisions.

Provincial Board Variance

KTB: KTB emphasizes algebraic proof that coefficient of restitution e equals 1 for perfectly elastic collisions and 0 for completely inelastic collisions.

STB: STB specifies that when two bodies stick together upon collision, the collision is perfectly inelastic with maximum possible kinetic energy loss.

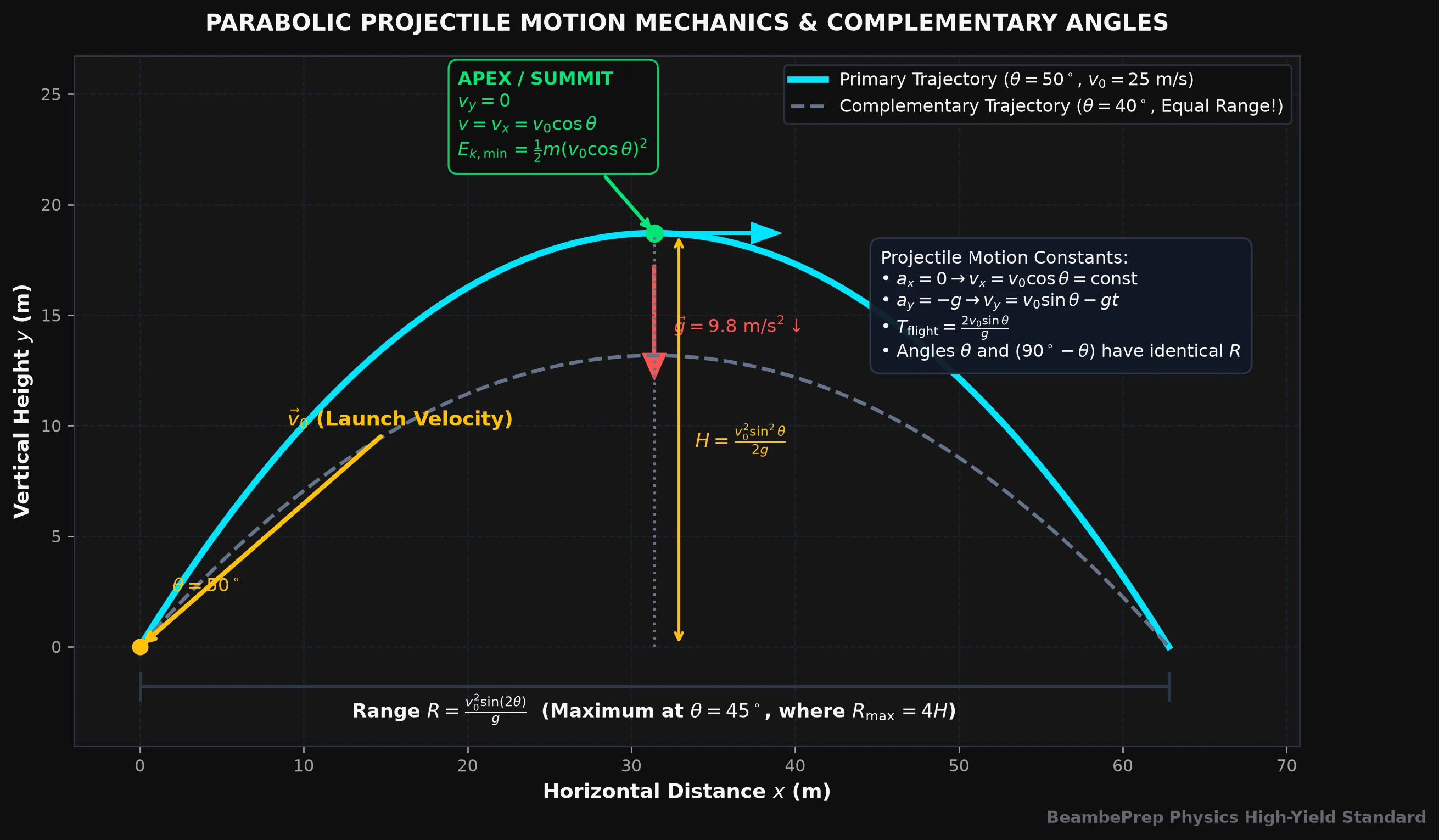

Parabolic Projectile Mechanics

A projectile is any launched object moving under the sole continuous influence of gravity, tracing a curved parabolic trajectory.

Motion along the horizontal and vertical axes occurs with complete mutual independence:

Horizontal Motion: Zero horizontal acceleration ($a_x = 0$). Horizontal velocity component remains constant throughout flight:

$$v_x = v_0 \cos\theta = \text{constant}$$

Vertical Motion: Constant downward gravitational acceleration ($a_y = -g$). Vertical velocity changes continuously under gravity:

$$v_y = v_0 \sin\theta - gt$$

Core Trajectory Equations

Maximum Height ($H$):
$$H = \frac{v_0^2 \sin^2\theta}{2g}$$
Time of Flight ($T$):
$$T = \frac{2v_0 \sin\theta}{g} \quad \left(\text{Summit time: } t_{\text{up}} = \frac{T}{2} = \frac{v_0 \sin\theta}{g}\right)$$
Horizontal Range ($R$):
$$R = \frac{v_0^2 \sin(2\theta)}{g}$$
Angle-Height-Range Identity:
$$\tan\theta = \frac{4H}{R}$$
Maximum Range Condition: Range reaches maximum at launch angle 45 degrees, where $\sin(2\theta) = 1$, giving:
$$R_{\max} = \frac{v_0^2}{g} = 4H$$
Complementary Angle Symmetry: Launch angles that sum to 90 degrees (such as $30^\circ$ and $60^\circ$, or $15^\circ$ and $75^\circ$) generate identical horizontal ranges for equal launch speeds. SZABMU 2023

Crucial Physiological Boundary

Is velocity zero at the apex of projectile motion?

No! Only the vertical velocity component is zero (v_y = 0). The horizontal component remains active (v_x = v_0 cos theta), so total velocity at the peak equals v_0 cos theta.

Provincial Board Variance

PTB: PTB explicitly defines a ballistic missile as an unpowered, unguided rocket following a ballistic trajectory after fuel burnout.

KTB: KTB derives that when height equals range ($H = R$), the launch angle is $\theta = \arctan(4) \approx 76^\circ$.

Terminal Velocity & Fluid Drag Mechanics

When a body moves through a viscous fluid, it encounters a resistive opposing force termed fluid drag:

Stokes's Law: For a smooth spherical particle of radius $r$ moving at velocity $v$ through a fluid of dynamic viscosity $\eta$, drag force is:

$$F_d = 6\pi \eta r v$$

Drag force increases directly with particle speed, particle radius, and fluid viscosity.

As a body falls through a fluid under gravity, downward gravitational force initially exceeds upward drag, producing acceleration. As falling speed increases, drag force rises until it balances gravitational weight. At this point, net force becomes zero ($a = 0$), and the body descends at constant Terminal Velocity ($v_t$):

$$mg = 6\pi \eta r v_t \implies v_t = \frac{2 r^2 \rho g}{9 \eta}$$

Terminal velocity is directly proportional to the square of particle radius ($v_t \propto r^2$).

Terminal Velocity Proportionalities

If the radius of a spherical raindrop doubles, its terminal velocity increases by a factor of 4x.
When terminal velocity is attained, acceleration is zero, velocity is constant, and net force on the object is zero.

Crucial Physiological Boundary

Does a falling skydiver continue accelerating once terminal velocity is reached?

No! At terminal velocity, air resistance exactly balances gravitational weight, resulting in zero net force and zero acceleration.

Provincial Board Variance

PTB: PTB specifies that fog droplets suspended in air have very small radii and therefore microscopic terminal velocities, appearing to float.

FTB: FTB notes Stokes's law is valid only for laminar, non-turbulent fluid flow at moderate velocities.

Kinematics Fundamentals & Reference Frames

Reference Frame Classification

Distance vs Displacement Dynamics

Geometric Invariants & Path Ratios

Velocity Vectors & Relative Motion

Relative Velocity Transformation Laws

Acceleration Archetypes & Directional Vectors

Motion Graph Interpretation: Slopes & Areas

Kinematic Graph Operations

Uniform Acceleration Equations & Free Fall

Specialized Free Fall Formulations ($v_i = 0, a = g$)

Newton's Laws of Motion & Linear Momentum

Linear Momentum Invariant

Impulse & Collision Dynamics

One-Dimensional Elastic Collision Formulations ($u_2 = 0$)

Parabolic Projectile Mechanics

Core Trajectory Equations

Terminal Velocity & Fluid Drag Mechanics

Terminal Velocity Proportionalities

Ready to test your active recall on Force and Motion?
